EKEMP Wearable Barcode Scanner /Android Data Collector With RFID 13.56Mhz,WIFI,3G,GPS(M35)

FOB Reference Price:Get Latest Price
US $286-499 / Units | 1 Unit/Units Sample Accepted (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Color:
Black
Products Status:
Stock
Operating System:
Android OS
Processor Type:
ARM Cortex A7 DUAL CORE 1.2Ghz
Style:
Handheld Computer
Memory Capacity:
≥ 256MB
Screen Size:
3.5 Inch
Weight:
330g (with Fingerprint)
Brand Name:
EKEMP
Model Number:
M35
Place of Origin:
Guangdong, China (Mainland)
Display:
3.5 Inch Screen
ROM:
MLC NAND Flash 512MB
Battery:
4000mAH Li-ion
RFID:
HF LF
Communication:
WIFI/3G/GPRS/CDMA/RFID/Bluetooth/Infrared/GPS
RAM:
DDR 256MB or 512MB
Power:
DC5v
Operation Temp:
_10℃~ +45℃
Drop Durability:
Withstand1.5 meter
SupplyAbility
SupplyAbility:
2000 Unit/Units per Month According to Specific Conditions
Packaging & Delivery
Packaging Details
Factory Standard Package Box
Port
Shenzhen City
Lead Time :
Within one week or Based on facts of order

EKEMP Wearable Barcode Scanner /Android Data Collector With RFID 13.56Mhz,WIFI,3G,GPS(M35)



Key Features:



 The model X6 is a mute-functional industrial rugged handheld PDA with powerful functions.

 1. Windows CE or Android OS optional combined with free SDK simplify your secondary development;

 2. High level CPU 1G Hz SAMSUNG ARM Cortex A7;

 3. High-capacity RAM 256MB or 512MB, ROM 512MB, MSD 32GB max;

 4. 3.5” big screen with TFT 480*640 VGA or 320*240 QVGA optional;

 5. Obligate space highly expandable for Barcode, RFID, SAM, OCR etc;

 6. Long life Build-in Li-battery (4000mAh) makes it easy to use anytime anywhere;

 7. IP65 approved.



Technical Parameter:



 Performance

CPU

SAMSUNG ARM Cortex A7 1.2GHz

RAM

Mobile DDR 256MB or 512MB

OS

Android 4.2 or Windows CE 6.0 ER3

Keyboard

34 Keys

Interface

USB 2.0 OTG, USB Host 1.1,SPI, RS-232

Memory

ROM

MLC NAND Flash 512MB

EXPANSION

Micro SD,supports Max 32GB

Bluetooth

Class V2.1-EDR

WIFI (Optional)

802.11b/802.11g/802.11n

3G

GSM/GPRS/WCDMA HSDPA optional

GPRS

U-block NEO-6th,Support AGPS, DGPS,RTK can be customized

Camera

Vibration Motor & LED Indicator

2.0Mega,ixelsAUTOFOCUS,Flashlight

Functions

Barcode scanner

1DSymbol SE95(Option 2D Symbol SE4500orHoneywell IT5100)

Fingerprint

508 DPI meets (Fingerprint Module can be removable)

RFID  (Optional)

HF 13.56Mhz, ISO/IEC 14443A/B,ISO15693

LF 125k,134.2khz ISO-11784/11785

UHF 860~950Mhz EPC Gen2,ISO180006

MR ZOCR Scanner

Snapped MRZ OCR Scanner,ICAO Documents 9303 standard.

Physical characteristics

Power

DC5v

Battery

4000mAH Li-ion(Rechargeable)

Storage Temp.

_20°C ~ +60°C

Operation Temp

_10°C~ +45°C

Operation Hum

5% ~ 90%

Size

192x82.0x30(mm) ;228 x 82 x 30(mm) (with fingerprint )

Weight

around 300g(without fingerprint);330g (with fingerprint)

Accessories

1Batterym,1 Stylus with hand strip,1 USB cable,1 AC charger, Optional,S232 cable,Cradle,Carcharger,USBhost Ethernet

Endurance

Sleeping

More than 5days

Working

More than 8 hours

Recharge Time

around 5 hours

Certification

CE UN38.3 RoHS CCC

Sealing Standard

IP65

Drop Durability

Withstand1.5meter drop on to concrete



Functions:

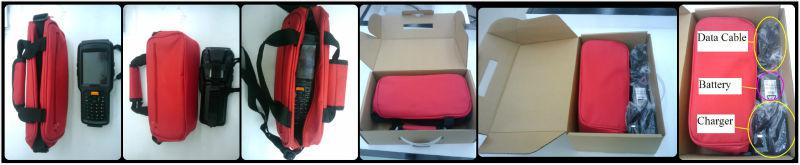

Package:

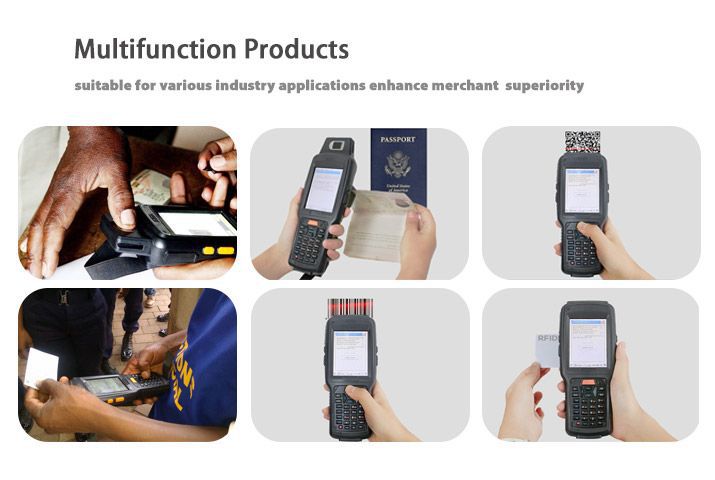

Application:

1)  Education;

2)  End-Customers;

3)  Play Games,Logistics;

4)  Hotel,Supermarket,Retail,Kiosk,Restaurant,Convenience store management;
5)  Lottery, Surveying, and other applications;

6)  Municipal and Public,Health Care;

7)  Contral and Monitoring;



 Success Story:

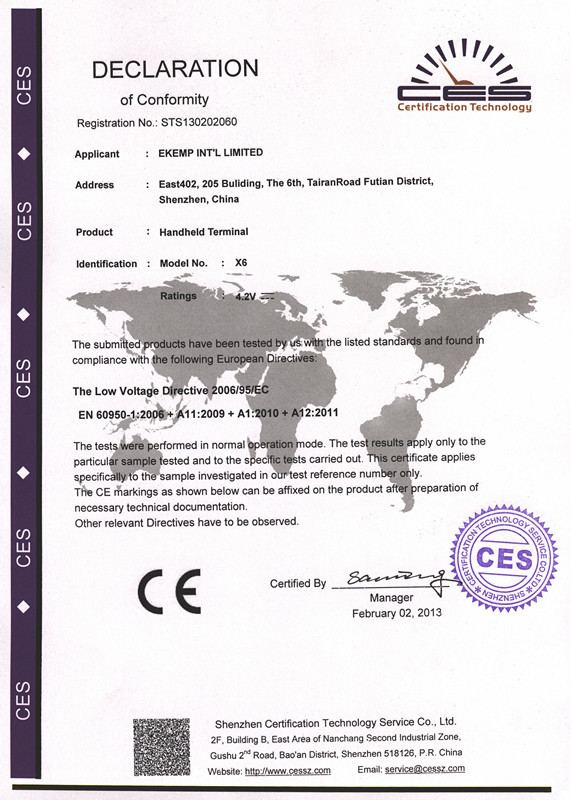

Certification:
